Docker: Criando suas próprias imagens – Parte III/III

O post de hoje é pra mostrar como criar suas imagens do docker, publicá-las no Docker Hub (Registry) e depois usar/disponibilizar onde precisar.

O primeiro passo é instalar o docker:

[root@rmartins /]# yum install docker-io
Loaded plugins: fastestmirror
Setting up Install Process
Loading mirror speeds from cached hostfile
* base: mirror.nbtelecom.com.br
* epel: mirror.globo.com
* extras: mirror.nbtelecom.com.br
* updates: mirror.nbtelecom.com.br
Resolving Dependencies
--> Running transaction check
---> Package docker-io.x86_64 0:1.4.1-3.el6 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

==============================================================================================================================================================================================================================================
Package Arch Version Repository Size
==============================================================================================================================================================================================================================================
Installing:
docker-io x86_64 1.4.1-3.el6 epel 4.5 M

Transaction Summary
==============================================================================================================================================================================================================================================
Install 1 Package(s)

Total download size: 4.5 M
Installed size: 19 M
Is this ok [y/N]: y
Downloading Packages:
docker-io-1.4.1-3.el6.x86_64.rpm | 4.5 MB 00:02
Running rpm_check_debug
Running Transaction Test
Transaction Test Succeeded
Running Transaction
Installing : docker-io-1.4.1-3.el6.x86_64 1/1
Verifying : docker-io-1.4.1-3.el6.x86_64 1/1

Installed:
docker-io.x86_64 0:1.4.1-3.el6

Complete!

Uma vez instalado, vamos iniciá-lo:

[root@rmartins /]# /etc/init.d/docker start
Starting cgconfig service: [ OK ]
Starting docker: [ OK ]

Agora vamos criar nosso diretório de trabalho

[root@rmartins /]# mkdir -p /docker/webserver
[root@rmartins /]# cd /docker/webserver

Dentro do nosso diretório de trabalho vamos criar dois arquivos para serem adicionados à nossa imagem pelo Dockerfile. Uma delas é um arquivo para ser configurado o repositório epel e outro é o conteúdo do index.html que será servido pelo nosso Nginx nesta demonstração:

O primeiro é o arquivo epel.repo:

cat <<'EOF' >> epel.repo
[epel]
name=Extra Packages for Enterprise Linux 6 - $basearch
baseurl=http://download.fedoraproject.org/pub/epel/6/$basearch
mirrorlist=https://mirrors.fedoraproject.org/metalink?repo=epel-6&arch=$basearch
failovermethod=priority
enabled=1
gpgcheck=0
EOF

O segundo o index.html:

cat <<'EOF' >> index.html

<center>Ricardo Martins | Docker Test</center>EOF

Em seguida vamos criar nosso Dockerfile:

[root@rmartins webserver]# vim Dockerfile
FROM centos:6
MAINTAINER Ricardo Martins <contato@ricardomartins.com.br>

ADD epel.repo /etc/yum.repos.d/

RUN yum update -y
RUN yum install -y nginx
RUN echo "daemon off;" >> /etc/nginx/nginx.conf
RUN rm -rf /usr/share/nginx/html/*

ADD index.html /usr/share/nginx/html/

CMD /usr/sbin/nginx -c /etc/nginx/nginx.conf

EXPOSE 80

O que fazem estas linhas de comando:

FROM centos:6 = Indica que utilizaremos a imagem base do Centos 6, do repositório do CentOS no Dockerhub (Registry) (https://registry.hub.docker.com/_/centos/)

MAINTAINER Ricardo Martins <contato@ricardomartins.com.br> = O nome e contato do mantenedor da imagem

ADD epel.repo /etc/yum.repos.d/ = Adiciona o conteúdo do arquivo epel.repo dentro de /etc/yum.repos.d. Isto é necessário para que seja utilizado o repositório do Epel para a instalação do Nginx

RUN yum update -y = Atualiza o sistema

RUN yum install -y nginx = Instala o Nginx

RUN echo “daemon off;” >> /etc/nginx/nginx.conf = De acordo com o conceito de funcionamento do Docker, um container deve rodar apenas um serviço. Sendo assim, em vez de rodar serviços em background, devem rodar em foreground. Então este comando desabilita a execução do nginx como daemon.

RUN rm -rf /usr/share/nginx/html/* = Remove o conteúdo de /usr/share/nginx/html/

ADD index.html /usr/share/nginx/html/ = Adiciona o arquivo index.html em /usr/share/nginx/html/

CMD /usr/sbin/nginx -c /etc/nginx/nginx.conf = Informa o comando a ser executado ao iniciar o container

EXPOSE 80 = Usado para informar qual porta o container docker irá “escutar”.

Agora vamos criar nossa imagem com o comando abaixo:

[root@rmartins webserver]# docker build -t=rmartins/nginx:teste .

Neste caso, estaremos criando a nossa imagem dentro do repositório rmartins/nginx com a tag teste. O “.” no final da linha informa para procurar o Dockerfile no diretório atual. A saída do comando está exibida abaixo, contendo todas as tasks realizadas:

Sending build context to Docker daemon 4.096 kB
Sending build context to Docker daemon
Step 0 : FROM centos:6
centos:6: The image you are pulling has been verified
511136ea3c5a: Pull complete
5b12ef8fd570: Pull complete
f6808a3e4d9e: Pull complete
Status: Downloaded newer image for centos:6
---> f6808a3e4d9e
Step 1 : MAINTAINER Ricardo Martins <contato@ricardomartins.com.br>
---> Running in 72bb3ca71976
---> 0e26bbc4a6fa
Removing intermediate container 72bb3ca71976
Step 2 : ADD epel.repo /etc/yum.repos.d/
---> 3238866cc178
Removing intermediate container f63fa4c5123b
Step 3 : RUN yum update -y
---> Running in 8d44ba718c35
Loaded plugins: fastestmirror
Setting up Update Process
Resolving Dependencies
--> Running transaction check
---> Package bind-libs.x86_64 32:9.8.2-0.30.rc1.el6_6.1 will be updated
---> Package bind-libs.x86_64 32:9.8.2-0.30.rc1.el6_6.2 will be an update
---> Package bind-utils.x86_64 32:9.8.2-0.30.rc1.el6_6.1 will be updated
---> Package bind-utils.x86_64 32:9.8.2-0.30.rc1.el6_6.2 will be an update
---> Package cyrus-sasl-lib.x86_64 0:2.1.23-15.el6_6.1 will be updated
---> Package cyrus-sasl-lib.x86_64 0:2.1.23-15.el6_6.2 will be an update
---> Package openssl.x86_64 0:1.0.1e-30.el6_6.5 will be updated
---> Package openssl.x86_64 0:1.0.1e-30.el6.8 will be an update
---> Package shadow-utils.x86_64 2:4.1.4.2-19.el6 will be updated
---> Package shadow-utils.x86_64 2:4.1.4.2-19.el6_6.1 will be an update
---> Package tzdata.noarch 0:2015a-1.el6 will be updated
---> Package tzdata.noarch 0:2015b-1.el6 will be an update
--> Finished Dependency Resolution

Dependencies Resolved

================================================================================
Package Arch Version Repository Size
================================================================================
Updating:
bind-libs x86_64 32:9.8.2-0.30.rc1.el6_6.2 updates 884 k
bind-utils x86_64 32:9.8.2-0.30.rc1.el6_6.2 updates 185 k
cyrus-sasl-lib x86_64 2.1.23-15.el6_6.2 updates 136 k
openssl x86_64 1.0.1e-30.el6.8 updates 1.5 M
shadow-utils x86_64 2:4.1.4.2-19.el6_6.1 updates 899 k
tzdata noarch 2015b-1.el6 updates 443 k

Transaction Summary
================================================================================
Upgrade 6 Package(s)

Total download size: 4.0 M
Downloading Packages:
--------------------------------------------------------------------------------
Total 583 kB/s | 4.0 MB 00:07
warning: rpmts_HdrFromFdno: Header V3 RSA/SHA1 Signature, key ID c105b9de: NOKEY
Retrieving key from file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-6
Importing GPG key 0xC105B9DE:
Userid : CentOS-6 Key (CentOS 6 Official Signing Key) <centos-6-key@centos.org>
Package: centos-release-6-6.el6.centos.12.2.x86_64 (@CentOS/$releasever)
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-6
Running rpm_check_debug
Running Transaction Test
Transaction Test Succeeded
Running Transaction
Warning: RPMDB altered outside of yum.
Updating : openssl-1.0.1e-30.el6.8.x86_64 1/12
Updating : 32:bind-libs-9.8.2-0.30.rc1.el6_6.2.x86_64 2/12
Updating : 32:bind-utils-9.8.2-0.30.rc1.el6_6.2.x86_64 3/12
Updating : 2:shadow-utils-4.1.4.2-19.el6_6.1.x86_64 4/12
Updating : cyrus-sasl-lib-2.1.23-15.el6_6.2.x86_64 5/12
Updating : tzdata-2015b-1.el6.noarch 6/12
Cleanup : tzdata-2015a-1.el6.noarch 7/12
Cleanup : 32:bind-utils-9.8.2-0.30.rc1.el6_6.1.x86_64 8/12
Cleanup : 32:bind-libs-9.8.2-0.30.rc1.el6_6.1.x86_64 9/12
Cleanup : openssl-1.0.1e-30.el6_6.5.x86_64 10/12
Cleanup : 2:shadow-utils-4.1.4.2-19.el6.x86_64 11/12
Cleanup : cyrus-sasl-lib-2.1.23-15.el6_6.1.x86_64 12/12
Verifying : openssl-1.0.1e-30.el6.8.x86_64 1/12
Verifying : tzdata-2015b-1.el6.noarch 2/12
Verifying : 32:bind-utils-9.8.2-0.30.rc1.el6_6.2.x86_64 3/12
Verifying : cyrus-sasl-lib-2.1.23-15.el6_6.2.x86_64 4/12
Verifying : 2:shadow-utils-4.1.4.2-19.el6_6.1.x86_64 5/12
Verifying : 32:bind-libs-9.8.2-0.30.rc1.el6_6.2.x86_64 6/12
Verifying : cyrus-sasl-lib-2.1.23-15.el6_6.1.x86_64 7/12
Verifying : openssl-1.0.1e-30.el6_6.5.x86_64 8/12
Verifying : 32:bind-utils-9.8.2-0.30.rc1.el6_6.1.x86_64 9/12
Verifying : 2:shadow-utils-4.1.4.2-19.el6.x86_64 10/12
Verifying : 32:bind-libs-9.8.2-0.30.rc1.el6_6.1.x86_64 11/12
Verifying : tzdata-2015a-1.el6.noarch 12/12

Updated:
bind-libs.x86_64 32:9.8.2-0.30.rc1.el6_6.2
bind-utils.x86_64 32:9.8.2-0.30.rc1.el6_6.2
cyrus-sasl-lib.x86_64 0:2.1.23-15.el6_6.2
openssl.x86_64 0:1.0.1e-30.el6.8
shadow-utils.x86_64 2:4.1.4.2-19.el6_6.1
tzdata.noarch 0:2015b-1.el6

Complete!
---> 0382a281fc73
Removing intermediate container 8d44ba718c35
Step 4 : RUN yum install -y nginx
---> Running in 45996a2b3d05
Loaded plugins: fastestmirror
Setting up Install Process
Determining fastest mirrors
* base: centos.ufms.br
* epel: mirror.uta.edu.ec
* extras: centos.ufms.br
* updates: centos.ufms.br
Resolving Dependencies
--> Running transaction check
---> Package nginx.x86_64 0:1.0.15-11.el6 will be installed
--> Processing Dependency: nginx-filesystem = 1.0.15-11.el6 for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: perl >= 5.006001 for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: perl(warnings) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: perl(strict) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: perl(constant) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: perl(XSLoader) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: perl(Exporter) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: perl(:MODULE_COMPAT_5.10.1) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: nginx-filesystem for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: libxslt.so.1(LIBXML2_1.0.18)(64bit) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: libxslt.so.1(LIBXML2_1.0.11)(64bit) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: gd for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: GeoIP for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: libxslt.so.1()(64bit) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: libperl.so()(64bit) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: libgd.so.2()(64bit) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: libexslt.so.0()(64bit) for package: nginx-1.0.15-11.el6.x86_64
--> Processing Dependency: libGeoIP.so.1()(64bit) for package: nginx-1.0.15-11.el6.x86_64
--> Running transaction check
---> Package GeoIP.x86_64 0:1.5.1-5.el6 will be installed
---> Package gd.x86_64 0:2.0.35-11.el6 will be installed
--> Processing Dependency: libpng12.so.0(PNG12_0)(64bit) for package: gd-2.0.35-11.el6.x86_64
--> Processing Dependency: libpng12.so.0()(64bit) for package: gd-2.0.35-11.el6.x86_64
--> Processing Dependency: libjpeg.so.62()(64bit) for package: gd-2.0.35-11.el6.x86_64
--> Processing Dependency: libfreetype.so.6()(64bit) for package: gd-2.0.35-11.el6.x86_64
--> Processing Dependency: libfontconfig.so.1()(64bit) for package: gd-2.0.35-11.el6.x86_64
--> Processing Dependency: libXpm.so.4()(64bit) for package: gd-2.0.35-11.el6.x86_64
--> Processing Dependency: libX11.so.6()(64bit) for package: gd-2.0.35-11.el6.x86_64
---> Package libxslt.x86_64 0:1.1.26-2.el6_3.1 will be installed
---> Package nginx-filesystem.noarch 0:1.0.15-11.el6 will be installed
---> Package perl.x86_64 4:5.10.1-136.el6_6.1 will be installed
--> Processing Dependency: perl(version) for package: 4:perl-5.10.1-136.el6_6.1.x86_64
--> Processing Dependency: perl(Pod::Simple) for package: 4:perl-5.10.1-136.el6_6.1.x86_64
--> Processing Dependency: perl(Module::Pluggable) for package: 4:perl-5.10.1-136.el6_6.1.x86_64
---> Package perl-libs.x86_64 4:5.10.1-136.el6_6.1 will be installed
--> Running transaction check
---> Package fontconfig.x86_64 0:2.8.0-5.el6 will be installed
---> Package freetype.x86_64 0:2.3.11-15.el6_6.1 will be installed
---> Package libX11.x86_64 0:1.6.0-2.2.el6 will be installed
--> Processing Dependency: libX11-common = 1.6.0-2.2.el6 for package: libX11-1.6.0-2.2.el6.x86_64
--> Processing Dependency: libxcb.so.1()(64bit) for package: libX11-1.6.0-2.2.el6.x86_64
---> Package libXpm.x86_64 0:3.5.10-2.el6 will be installed
---> Package libjpeg-turbo.x86_64 0:1.2.1-3.el6_5 will be installed
---> Package libpng.x86_64 2:1.2.49-1.el6_2 will be installed
---> Package perl-Module-Pluggable.x86_64 1:3.90-136.el6_6.1 will be installed
---> Package perl-Pod-Simple.x86_64 1:3.13-136.el6_6.1 will be installed
--> Processing Dependency: perl(Pod::Escapes) >= 1.04 for package: 1:perl-Pod-Simple-3.13-136.el6_6.1.x86_64
---> Package perl-version.x86_64 3:0.77-136.el6_6.1 will be installed
--> Running transaction check
---> Package libX11-common.noarch 0:1.6.0-2.2.el6 will be installed
---> Package libxcb.x86_64 0:1.9.1-2.el6 will be installed
--> Processing Dependency: libXau.so.6()(64bit) for package: libxcb-1.9.1-2.el6.x86_64
---> Package perl-Pod-Escapes.x86_64 1:1.04-136.el6_6.1 will be installed
--> Running transaction check
---> Package libXau.x86_64 0:1.0.6-4.el6 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

================================================================================
Package Arch Version Repository Size
================================================================================
Installing:
nginx x86_64 1.0.15-11.el6 epel 404 k
Installing for dependencies:
GeoIP x86_64 1.5.1-5.el6 epel 21 M
fontconfig x86_64 2.8.0-5.el6 base 186 k
freetype x86_64 2.3.11-15.el6_6.1 updates 361 k
gd x86_64 2.0.35-11.el6 base 142 k
libX11 x86_64 1.6.0-2.2.el6 base 586 k
libX11-common noarch 1.6.0-2.2.el6 base 192 k
libXau x86_64 1.0.6-4.el6 base 24 k
libXpm x86_64 3.5.10-2.el6 base 51 k
libjpeg-turbo x86_64 1.2.1-3.el6_5 base 174 k
libpng x86_64 2:1.2.49-1.el6_2 base 182 k
libxcb x86_64 1.9.1-2.el6 base 110 k
libxslt x86_64 1.1.26-2.el6_3.1 base 452 k
nginx-filesystem noarch 1.0.15-11.el6 epel 7.9 k
perl x86_64 4:5.10.1-136.el6_6.1 updates 10 M
perl-Module-Pluggable x86_64 1:3.90-136.el6_6.1 updates 40 k
perl-Pod-Escapes x86_64 1:1.04-136.el6_6.1 updates 32 k
perl-Pod-Simple x86_64 1:3.13-136.el6_6.1 updates 212 k
perl-libs x86_64 4:5.10.1-136.el6_6.1 updates 578 k
perl-version x86_64 3:0.77-136.el6_6.1 updates 51 k

Transaction Summary
================================================================================
Install 20 Package(s)

Total download size: 35 M
Installed size: 87 M
Downloading Packages:
--------------------------------------------------------------------------------
Total 363 kB/s | 35 MB 01:37
Running rpm_check_debug
Running Transaction Test
Transaction Test Succeeded
Running Transaction
Installing : freetype-2.3.11-15.el6_6.1.x86_64 1/20
Installing : fontconfig-2.8.0-5.el6.x86_64 2/20
Installing : 1:perl-Pod-Escapes-1.04-136.el6_6.1.x86_64 3/20
Installing : 1:perl-Module-Pluggable-3.90-136.el6_6.1.x86_64 4/20
Installing : 4:perl-libs-5.10.1-136.el6_6.1.x86_64 5/20
Installing : 1:perl-Pod-Simple-3.13-136.el6_6.1.x86_64 6/20
Installing : 3:perl-version-0.77-136.el6_6.1.x86_64 7/20
Installing : 4:perl-5.10.1-136.el6_6.1.x86_64 8/20
Installing : libX11-common-1.6.0-2.2.el6.noarch 9/20
Installing : libjpeg-turbo-1.2.1-3.el6_5.x86_64 10/20
Installing : libxslt-1.1.26-2.el6_3.1.x86_64 11/20
Installing : 2:libpng-1.2.49-1.el6_2.x86_64 12/20
Installing : nginx-filesystem-1.0.15-11.el6.noarch 13/20
Installing : GeoIP-1.5.1-5.el6.x86_64 14/20
Installing : libXau-1.0.6-4.el6.x86_64 15/20
Installing : libxcb-1.9.1-2.el6.x86_64 16/20
Installing : libX11-1.6.0-2.2.el6.x86_64 17/20
Installing : libXpm-3.5.10-2.el6.x86_64 18/20
Installing : gd-2.0.35-11.el6.x86_64 19/20
Installing : nginx-1.0.15-11.el6.x86_64 20/20
Verifying : 3:perl-version-0.77-136.el6_6.1.x86_64 1/20
Verifying : freetype-2.3.11-15.el6_6.1.x86_64 2/20
Verifying : libXau-1.0.6-4.el6.x86_64 3/20
Verifying : GeoIP-1.5.1-5.el6.x86_64 4/20
Verifying : 1:perl-Pod-Simple-3.13-136.el6_6.1.x86_64 5/20
Verifying : 1:perl-Module-Pluggable-3.90-136.el6_6.1.x86_64 6/20
Verifying : libXpm-3.5.10-2.el6.x86_64 7/20
Verifying : nginx-filesystem-1.0.15-11.el6.noarch 8/20
Verifying : fontconfig-2.8.0-5.el6.x86_64 9/20
Verifying : libxcb-1.9.1-2.el6.x86_64 10/20
Verifying : 2:libpng-1.2.49-1.el6_2.x86_64 11/20
Verifying : 4:perl-5.10.1-136.el6_6.1.x86_64 12/20
Verifying : nginx-1.0.15-11.el6.x86_64 13/20
Verifying : 4:perl-libs-5.10.1-136.el6_6.1.x86_64 14/20
Verifying : libxslt-1.1.26-2.el6_3.1.x86_64 15/20
Verifying : libjpeg-turbo-1.2.1-3.el6_5.x86_64 16/20
Verifying : 1:perl-Pod-Escapes-1.04-136.el6_6.1.x86_64 17/20
Verifying : libX11-1.6.0-2.2.el6.x86_64 18/20
Verifying : libX11-common-1.6.0-2.2.el6.noarch 19/20
Verifying : gd-2.0.35-11.el6.x86_64 20/20

Installed:
nginx.x86_64 0:1.0.15-11.el6

Dependency Installed:
GeoIP.x86_64 0:1.5.1-5.el6
fontconfig.x86_64 0:2.8.0-5.el6
freetype.x86_64 0:2.3.11-15.el6_6.1
gd.x86_64 0:2.0.35-11.el6
libX11.x86_64 0:1.6.0-2.2.el6
libX11-common.noarch 0:1.6.0-2.2.el6
libXau.x86_64 0:1.0.6-4.el6
libXpm.x86_64 0:3.5.10-2.el6
libjpeg-turbo.x86_64 0:1.2.1-3.el6_5
libpng.x86_64 2:1.2.49-1.el6_2
libxcb.x86_64 0:1.9.1-2.el6
libxslt.x86_64 0:1.1.26-2.el6_3.1
nginx-filesystem.noarch 0:1.0.15-11.el6
perl.x86_64 4:5.10.1-136.el6_6.1
perl-Module-Pluggable.x86_64 1:3.90-136.el6_6.1
perl-Pod-Escapes.x86_64 1:1.04-136.el6_6.1
perl-Pod-Simple.x86_64 1:3.13-136.el6_6.1
perl-libs.x86_64 4:5.10.1-136.el6_6.1
perl-version.x86_64 3:0.77-136.el6_6.1

Complete!
---> c33cc1e02349
Removing intermediate container 45996a2b3d05
Step 5 : RUN echo "daemon off;" >> /etc/nginx/nginx.conf
---> Running in a2529e48704f
---> 8c4764c39165
Removing intermediate container a2529e48704f
Step 6 : RUN rm -rf /usr/share/nginx/html/*
---> Running in f009613f9586
---> 7367163ddf6b
Removing intermediate container f009613f9586
Step 7 : ADD index.html /usr/share/nginx/html/
---> 6991229431d0
Removing intermediate container ea6eee679788
Step 8 : CMD /usr/sbin/nginx -c /etc/nginx/nginx.conf
---> Running in 406af26140ad
---> 2be3b2ad822b
Removing intermediate container 406af26140ad
Step 9 : EXPOSE 80
---> Running in 539a5bb88ce1
---> 1601aa313bde
Removing intermediate container 539a5bb88ce1
Successfully built 1601aa313bde

Uma vez finalizado, podemos ver as imagens disponíveis no nosso cache local:

[root@rmartins webserver]# docker images
REPOSITORY TAG IMAGE ID CREATED VIRTUAL SIZE
rmartins/nginx teste 1601aa313bde 2 minutes ago 398.3 MB
centos 6 f6808a3e4d9e 5 weeks ago 215.7 MB

Note que temos duas imagens: 1601aa313bde e f6808a3e4d9e. A primeira é a que acabamos de gerar. A segunda é a que foi usada para gerar a nossa, uma vez que especificamos para utilizar uma imagem base do CentOS 6. O que aconteceu é que o docker baixou do repositório do CentOS no Dockerhub (Registry) e a imagem base do CentOS 6.

O próximo passo é publicar a nossa imagem no repositório do Dockerhub (Registry), uma vez que por enquanto ele existe apenas localmente. Para isso, você deve ter um usuário e senha previamente cadastrados em http://hub.docker.com. Depois de criar seu usuário, rode o comando de login e informe seus dados. No meu caso:

[root@rmartins webserver]# docker login
Username: rmartins
Password: -------
Email: contato@ricardomartins.com.br
Login Succeeded

Feito isso você já está logado no Dockerhub (Registry), então basta fazer o push da sua imagem no seu repositório:

[root@rmartins webserver]# docker push rmartins/nginx
The push refers to a repository [rmartins/nginx] (len: 1)
Sending image list
Pushing repository rmartins/nginx (1 tags)
511136ea3c5a: Image already pushed, skipping
5b12ef8fd570: Image already pushed, skipping
f6808a3e4d9e: Image already pushed, skipping
0e26bbc4a6fa: Image successfully pushed
3238866cc178: Image successfully pushed
0382a281fc73: Image successfully pushed
c33cc1e02349: Image successfully pushed
8c4764c39165: Image successfully pushed
7367163ddf6b: Image successfully pushed
6991229431d0: Image successfully pushed
2be3b2ad822b: Image successfully pushed
1601aa313bde: Image successfully pushed
Pushing tag for rev [1601aa313bde] on {https://cdn-registry-1.docker.io/v1/repositories/rmartins/nginx/tags/teste}

Feito isso, você já pode conferir a imagem no repositório. Neste caso, acesse em https://registry.hub.docker.com/u/rmartins/nginx/

Agora a imagem do nosso container já está disponibilizada para todos na internet. Aos interessados em usar, basta rodar o comando abaixo depois de instalar o docker:

[root@rmartins webserver]# docker run -d -p 80:80 rmartins/nginx:teste
c985f8c73207ff3ac1b61881b9cdc95657af5109557ca9156e3be7873e1ac27

Por padrão o docker irá procurar informada em cache. Neste caso encontrou pois criamos esta imagem localmente, porém se estivesse apenas testando uma imagem disponibilizada por alguem no Dockerhub (Registry), o docker iria realizar o download para a máquina e em seguida rodar o container desta imagem.

Conferindo a execução do container:

[root@rmartins webserver]# docker ps

CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
c985f8c73207 rmartins/nginx:teste "/bin/sh -c '/usr/sb 38 seconds ago Up 35 seconds 0.0.0.0:80->80/tcp boring_wilson

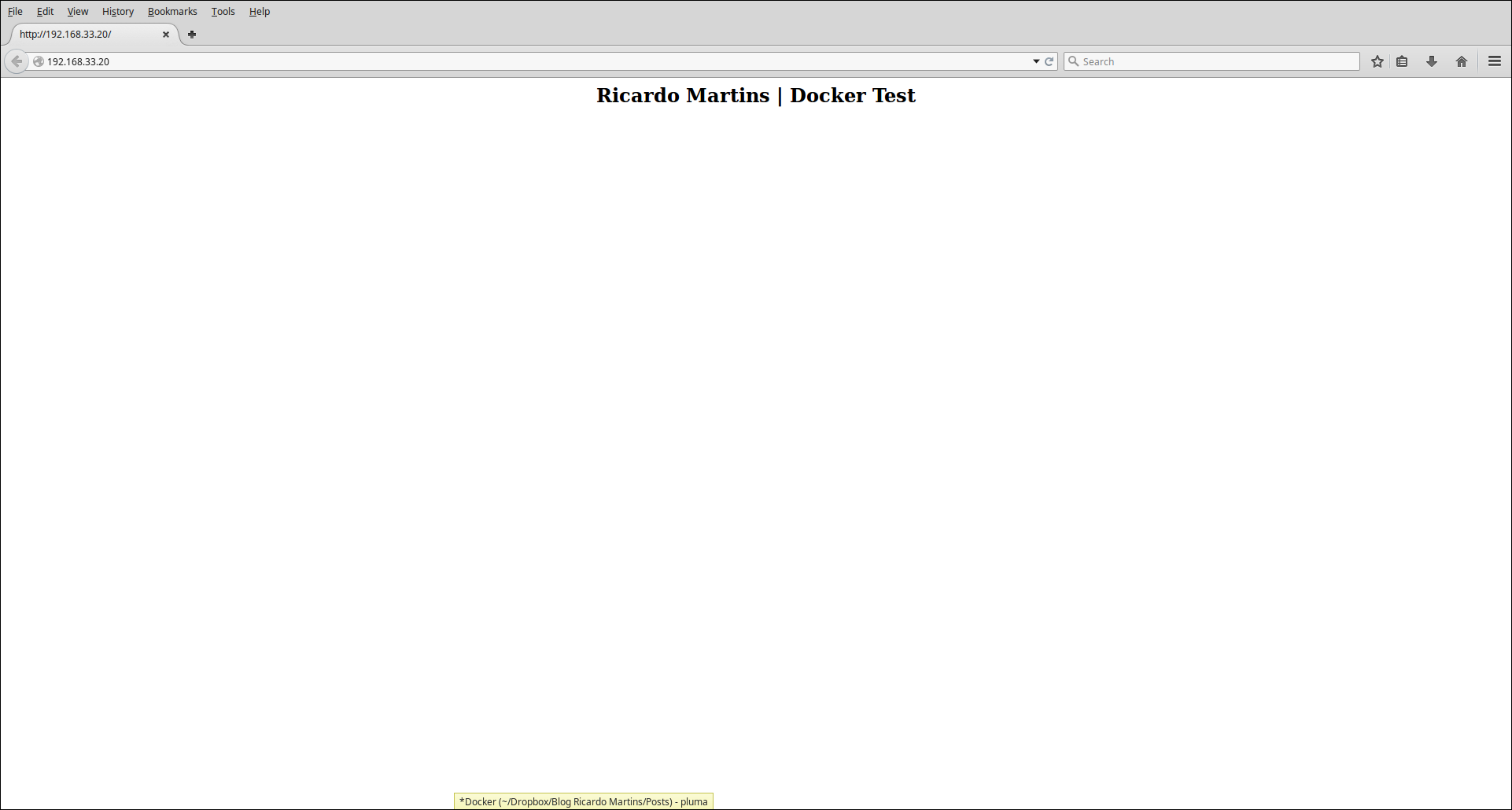

Ao acessar http://ip.do.host será visualizado o nginx rodando, com o index.html customizado:

Docker1

Fazendo alterações:

Se quiser, você pode acessar o shell do container e realizar alterações:

[root@rmartins webserver]# docker exec -it c985f8c73207 bash

Seremos direcionados para dentro do container:

[root@c985f8c73207 /]#

Então vou alterar o arquivo index.html, inserindo uma linha a mais, conforme abaixo:

[root@c985f8c73207 /]# vi /usr/share/nginx/html/index.html
<center>Ricardo Martins | Docker Test</center><center>Testando alteracoes</center>

Agora vamos sair do container (basta escrever “exit” – sem aspas) e visualizar as alterações:

[root@rmartins webserver]# docker diff c985f8c73207
C /usr
C /usr/share
C /usr/share/nginx
C /usr/share/nginx/html
C /usr/share/nginx/html/index.html
C /root
A /root/.bash_history
C /var
C /var/log
C /var/log/nginx
A /var/log/nginx/access.log
A /var/log/nginx/error.log
C /var/lib
C /var/lib/nginx
C /var/lib/nginx/tmp
A /var/lib/nginx/tmp/client_body
A /var/lib/nginx/tmp/fastcgi
A /var/lib/nginx/tmp/proxy
A /var/lib/nginx/tmp/scgi
A /var/lib/nginx/tmp/uwsgi
C /var/run
A /var/run/nginx.pid

E por fim criar uma nova imagem baseando-se no container atual:

[root@rmartins webserver]# docker commit c985f8c73207 rmartins/nginx-alterado
9ece9e81425f2727976aa3b2e239c5a30d140413f3f546cf948becb328891eb9

Publicando no Dockerhub (Registry) a imagem alterada:

[root@rmartins webserver]# docker push rmartins/nginx-alterado
The push refers to a repository [rmartins/nginx-alterado] (len: 1)
Sending image list
Pushing repository rmartins/nginx-alterado (1 tags)
511136ea3c5a: Image already pushed, skipping
5b12ef8fd570: Image already pushed, skipping
f6808a3e4d9e: Image already pushed, skipping
0e26bbc4a6fa: Image already pushed, skipping
3238866cc178: Image already pushed, skipping
0382a281fc73: Image already pushed, skipping
c33cc1e02349: Image already pushed, skipping
8c4764c39165: Image already pushed, skipping
7367163ddf6b: Image already pushed, skipping
6991229431d0: Image already pushed, skipping
2be3b2ad822b: Image already pushed, skipping
1601aa313bde: Image already pushed, skipping
9ece9e81425f: Image successfully pushed
Pushing tag for rev [9ece9e81425f] on {https://cdn-registry-1.docker.io/v1/repositories/rmartins/nginx-alterado/tags/latest}

Note que não informei uma tag específica, então esta imagem ganha uma tag padrão, chamada latest.

Agora vou dar stop no container em execução:

[root@rmartins /]# docker stop c985f8c73207
c985f8c73207

E subir nossa outra imagem alterada:

[root@rmartins /]# docker run -d -p 80:80 rmartins/nginx-alterado
236204839ae3680f21c6c9cc4bfe2d2493732a24b2b5b2edbe071379f00ec501

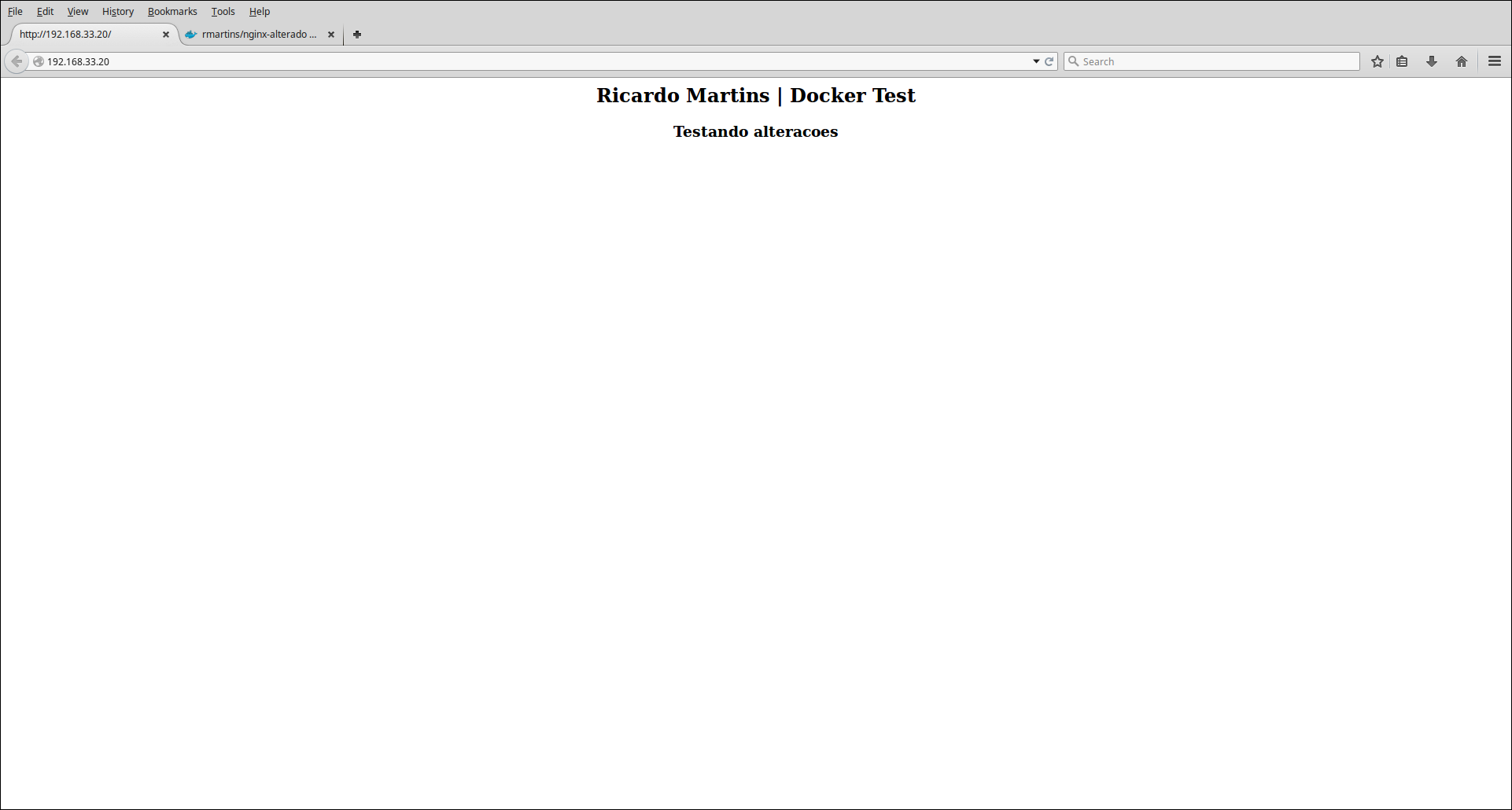

Acessando:

Docker2

Mais um teste para finalizar. Identificando o container em execução com o nginx alterado:

[root@rmartins /]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2b1cf57a7ad9 rmartins/nginx-alterado:latest "/bin/sh -c '/usr/sb 3 minutes ago Up 3 minutes 0.0.0.0:80->80/tcp fervent_colden

Dando stop nele:

[root@rmartins /]# docker stop 2b1cf57a7ad9
2b1cf57a7ad9

Iniciando o container com a imagem do Nginx original:

[root@rmartins /]# docker run -d -p 80:80 rmartins/nginx:teste
0ab61e5085d8a0bbf820fe0e21d0d7f500215d90c898150876391a05b4cccfbb

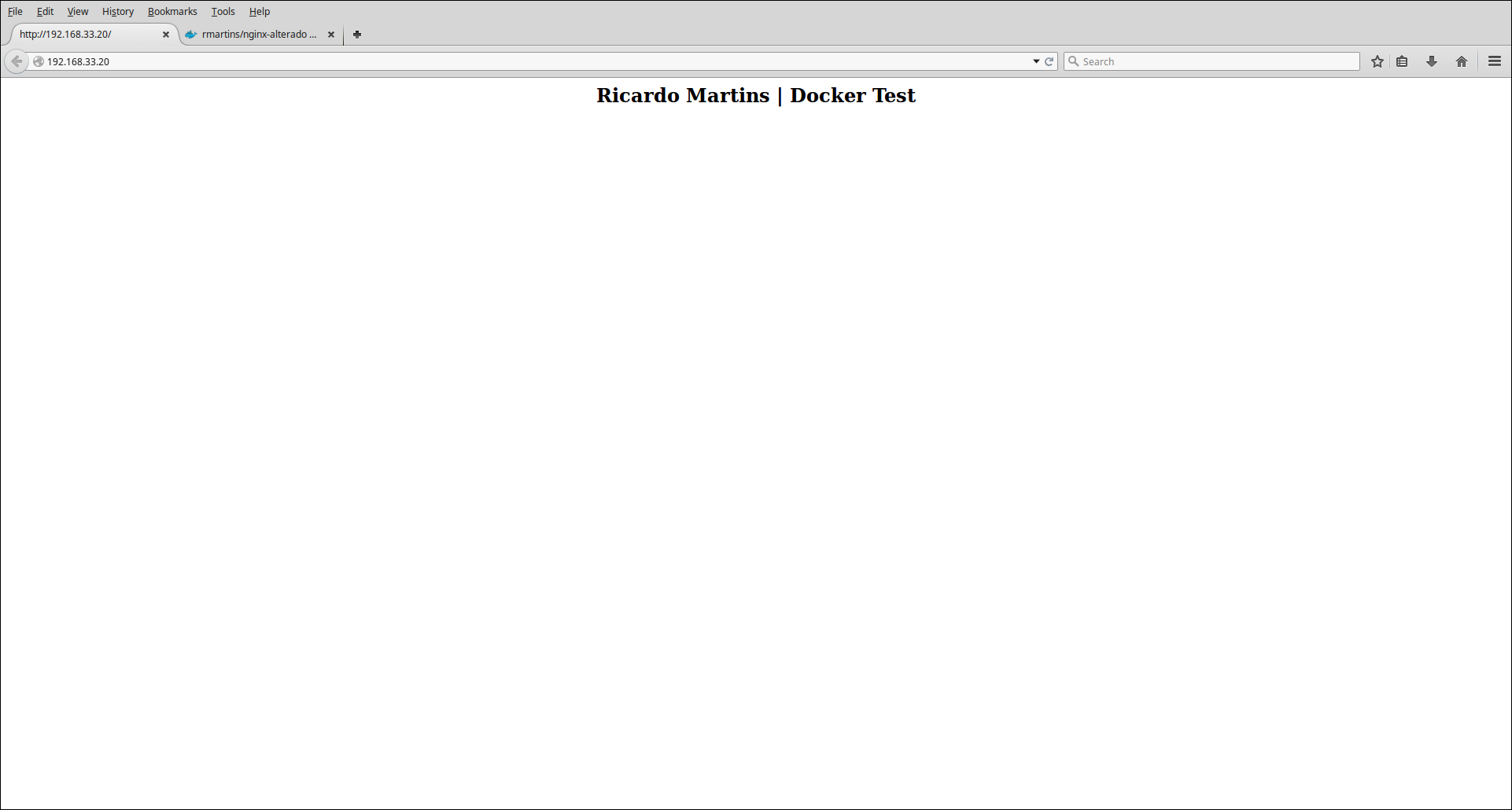

Validando:

Docker3

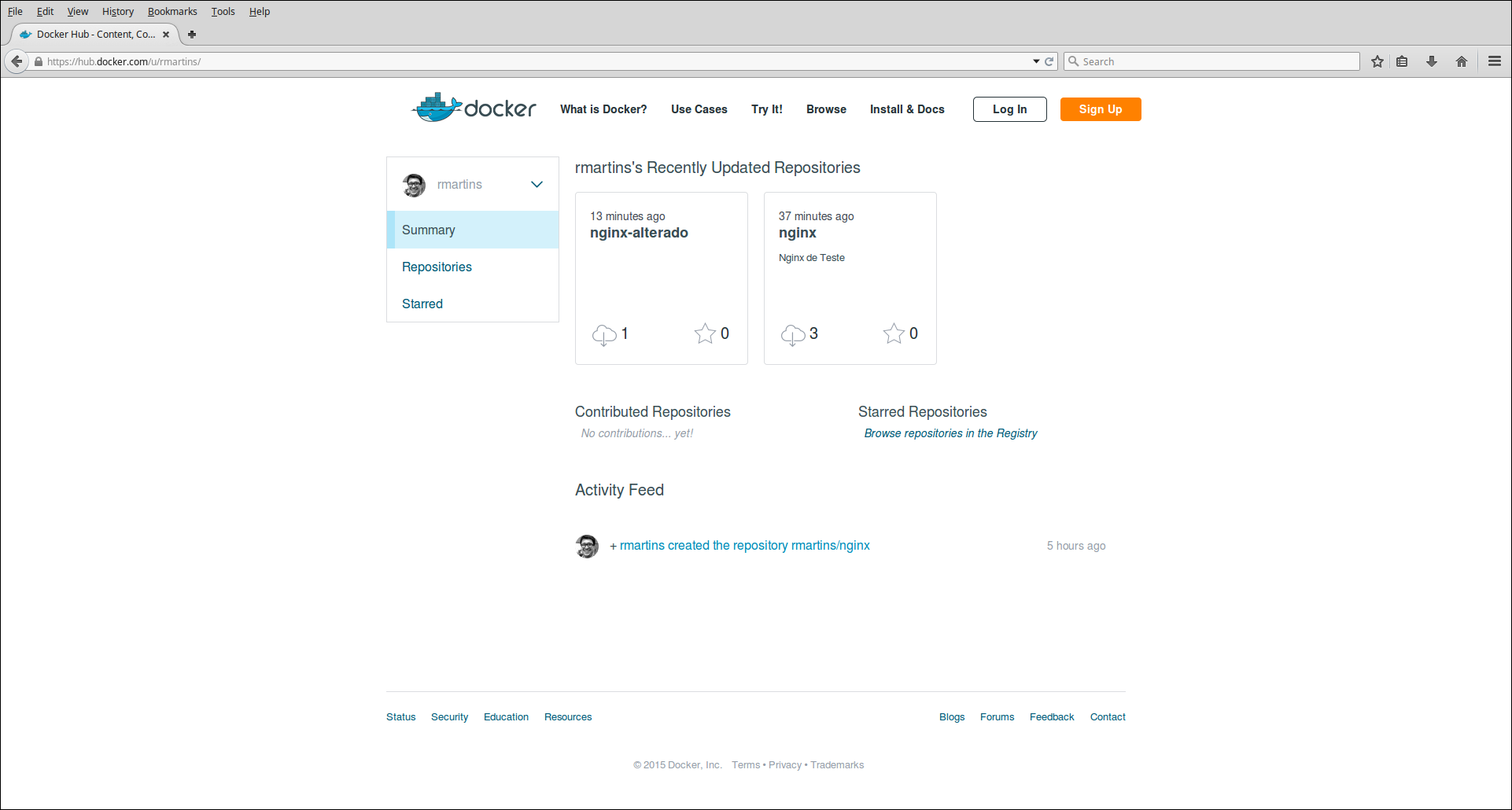

Conferindo os dois no Dockerhub (Registry):

Docker4

Até a próxima!

  • Edson Junior

    Boa noite Ricardo eu acompanhei seus artigos gostei muito, eu estou iniciando com docker e tenho uma duvida. No meu caso eu trabalho com Symfony2, quando eu levanto um servidor com ngix ou apache, como eu faço para ter dois projetos diferente rodando? sendo os dois usando symfony2.

  • Pingback: Primeiros passos com Docker – Aécio Pires()
